DATACOMM Single Section 6U Width 600 X Depth xxx WM cabinet (Refer datasheet for sizes)

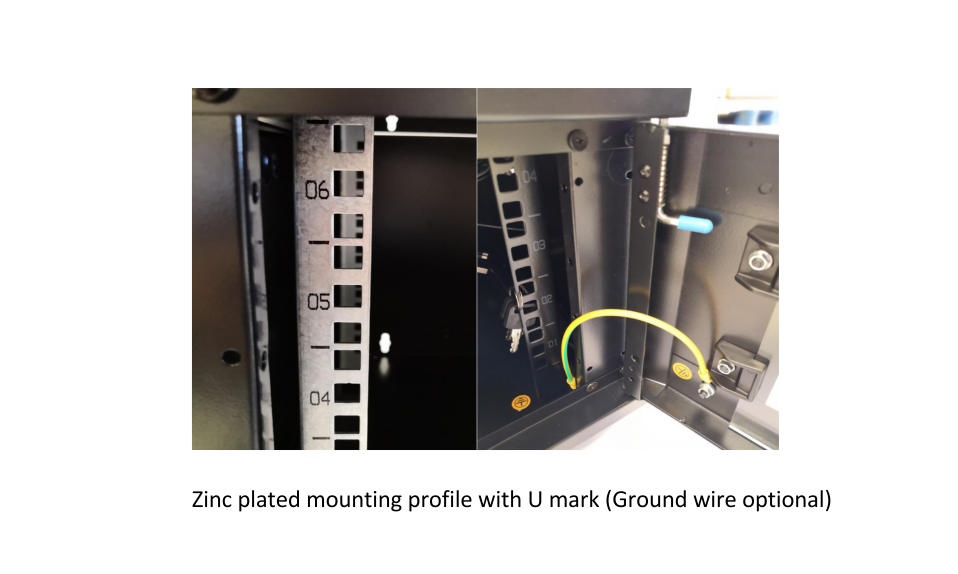

Description:The DATACOMM Single Section 6U Wall-Mount Cabinet (600mm width) is a compact enclosure for 19″ rack-mount equipment, featuring a lockable tempered glass front door and adjustable mounting profiles. It includes removable side panels and cable entry points, making installation and cable management simple and efficient.

Part Number: DCN-WM-6xxx

Key Features:

  • 19 inch standard

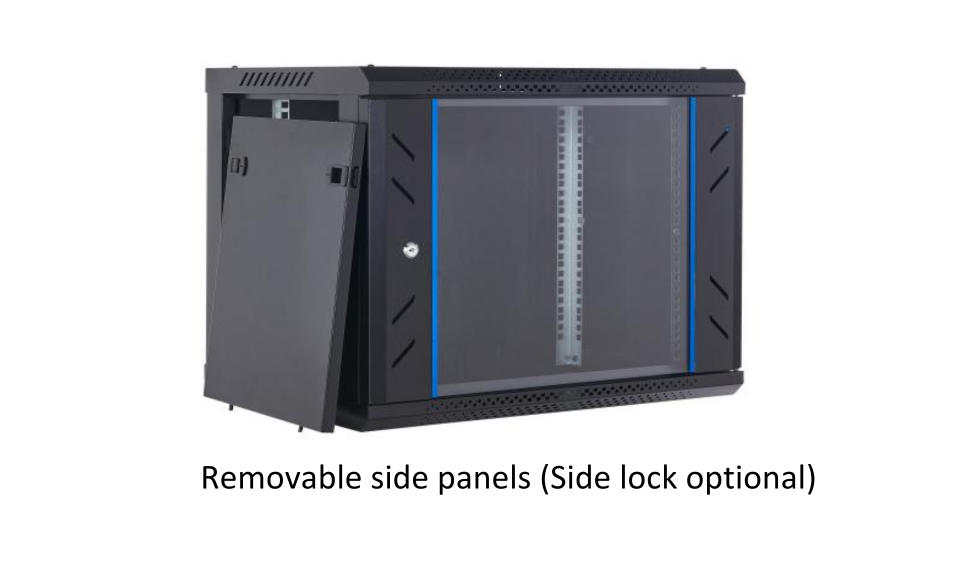

  • Removable Side Panels, side locks optional

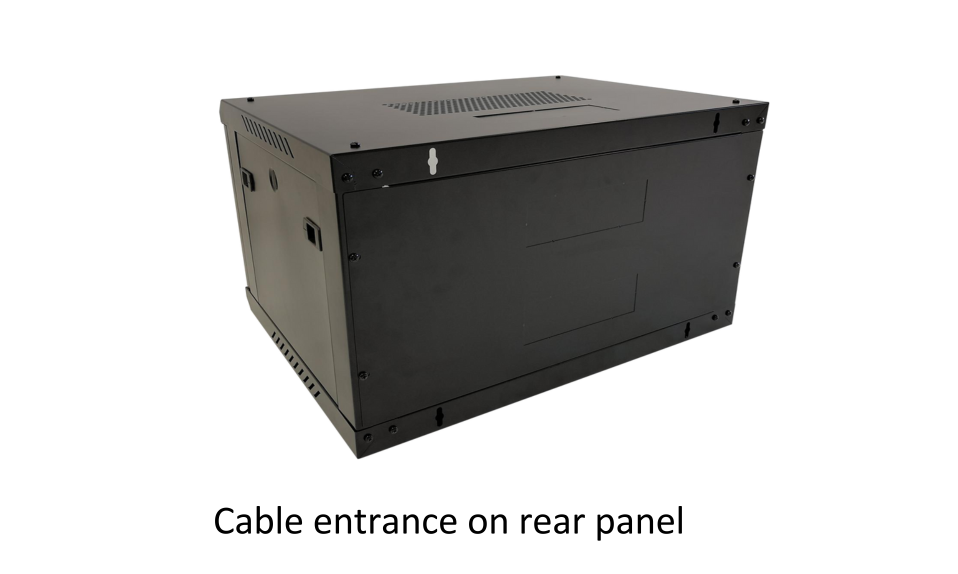

  • Knock off hole for entering cable on both top cover, bottom panel, real panel
  • Turning angle of front door is over 180 degrees
  • Easy mounting installation
  • Unassembled package saving shipping space
  • Fans, shelf, PDU are optional
Category:
Enquire NowDownload Datasheet

Specification

The Cabinet Sizes

ModelDescriptionDimensions (mm)
DCN-WM-6406DATACOMM Single Section 6U Wall-Mount Cabinet600 × 450
DCN-WM-6409DATACOMM Single Section 9U Wall-Mount Cabinet600 × 450
DCN-WM-6412DATACOMM Single Section 12U Wall-Mount Cabinet600 × 450
DCN-WM-6415DATACOMM Single Section 15U Wall-Mount Cabinet600 × 450
DCN-WM-6606DATACOMM Single Section 6U Wall-Mount Cabinet600 × 600
DCN-WM-6609DATACOMM Single Section 9U Wall-Mount Cabinet600 × 600
DCN-WM-6612DATACOMM Single Section 12U Wall-Mount Cabinet600 × 600
DCN-WM-6615DATACOMM Single Section 15U Wall-Mount Cabinet600 × 600

Additional information

Color

Black
