DCN 24-Port Gigabit Managed PoE Switch, DCN-GS-2402WP

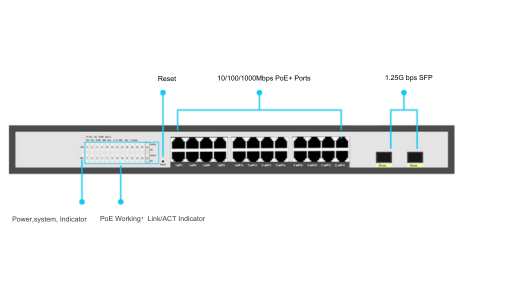

DCN 24-Port Gigabit Managed PoE Switch, DCN-GS-2402WP - Image 2
DCN 24-Port Gigabit Managed PoE Switch, DCN-GS-2402WP - Image 3

DCN 24-Port Gigabit Smart Managed PoE Switch (DCN-GS-2402WP)

Description:The DCN-GS-2402WP is a 24-Port Gigabit PoE Switch with 2 SFP uplinks and a 400W power budget. It’s ideal for Wi-Fi, IP phones, cameras, and office networks, offering fast, reliable, and affordable performance. Perfect for SMEs, schools, and hotels, with a 2-year warranty included.

Model No: DCN-GS-2402WP

Key Features:

  • 24 × 10/100/1000 Mbps Gigabit Ethernet Ports
  • 2 × Gigabit SFP Uplink Slots for Fiber Connectivity
  • Web Smart Management Interface
  • VLAN & Network Segmentation (IEEE 802.1Q)
  • Quality of Service (QoS) for Traffic Prioritization
  • Link Aggregation (LACP) for Enhanced Bandwidth and Redundancy
  • Spanning Tree Protocol (STP/RSTP) for Network Stability
  • Advanced Security and Access Control with Port Protection and ACLs
  • Energy-Efficient Operation (IEEE 802.3az)
  • Compact, Durable 1U Rack-Mount Design





Key Benefits:

  1. Simplified Network Management via Intuitive Web Interface
  2. High Performance and Reliable Data Delivery
  3. Enhanced Security, Scalability, and Operational Flexibility
  4. Energy and Cost Efficiency for Long-Term Savings
  5. Continuous 24/7 Reliability with Robust Hardware Architecture
  6. Comprehensive 2-Year Warranty for Extended Assurance
Categories: ,
Enquire NowDownload Datasheet

Specification

Model
Model Name DCN-GS-2402WP
Hardware Specifications
Type 24-Port 10/100/1000Mbps WEB Managed PoE Switch with 2 Gigabit SFP
PoE Standard IEEE 802.3af / IEEE 802.3at Power over Ethernet / Plus (PSE)
PoE Supply Type End-span (1/2+, 3/6−)
PoE Power Output Per Port 52V DC, 300mA (15.4W, IEEE 802.3af) / 600mA (30W, IEEE 802.3at)
PoE Power Budget 400W Total
PoE Ports 24 × 10/100/1000BASE-T RJ45 PoE Ports
SFP Ports 2 × 1000Base-X SFP Slots (Single/Dual Fiber Supported)
Transmission Model Store and Forward
Backplane Bandwidth 56Gbps
Packet Forwarding Rate 38.69Mpps
MAC Address Table 8K
Power Requirement AC 100–240V, 50/60Hz
ESD Protection 6KV ESD

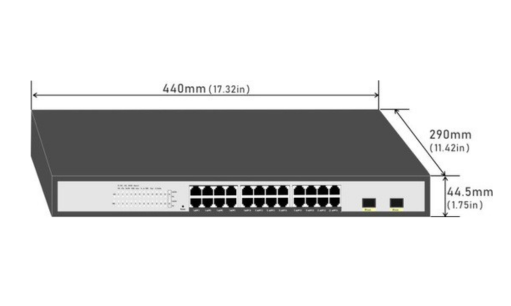

Dimension (W×D×H) 440 × 290 × 45mm (17.32 × 11.42 × 1.77 in)
Weight 4 kg
Thermal Fan 2 Fans Design
LED Indicators Power (PWR), Link, PoE Working Status
Layer 2 Functions
Port Mirroring TX / RX / Both Many-to-1 Monitor
VLAN 802.1Q Tagged-based VLAN, Up to 26 VLAN Groups
Spanning Tree Protocol STP (IEEE 802.1D), RSTP (IEEE 802.1w)
IGMP Snooping Supported
Loopback Detection Supported
Bandwidth Control 16–1,000,000 Kbit/sec, Multiple of 16
QoS (Quality of Service)
Priority Queues 8 Mapping IDs to 8-Level Priority Queues
Port Number & 802.1p Priority Supported
Security
Authentication IEEE 802.1X Port-Based Authentication
MAC Management Static MAC Address
Storm Control Supported
PoE Management
Control Functions Open or Close Port, PoE Scheduling Management, Power and Current Display
Management Function
Basic Management Interfaces Web Browser / SNMP v1, v2c
Secure Management Interfaces Firmware Upgrade by HTTP Protocol through Ethernet Network
SNMP Supported
Environment & Safety
Environment Specification FCC Part15 Class A, CE, RoHS
Operating Temperature -20°C ~ +55°C
Storage Temperature -40°C ~ +75°C
Operating Humidity 5% ~ 95%
Storage Humidity 5% ~ 95%

Additional information

Color

Black
