Specification
| Hardware Specifications | |
|---|---|
| Interface | PoE In: 1 × 10/100/1000BASE-T Ethernet (PoE PD In) PoE Out: 4 × 10/100/1000BASE-T Ethernet (PoE PSE Out) |
| LED Indicator | Link / ACT |
| Switch Architecture | Store-and-Forward Architecture |
| MAC Address Table | 4K MAC with Auto Learning |
| Network Cable | UTP Cat5 or Above |
| Backplane Bandwidth | 16Gbps |
| Packet Forwarding Rate | 11.46Mpps |
| Flow Control | IEEE 802.3x Pause Frame (Full Duplex) Back Pressure (Half Duplex) |
| ESD Protection | Air: 8KV DC Contact: 6KV DC |

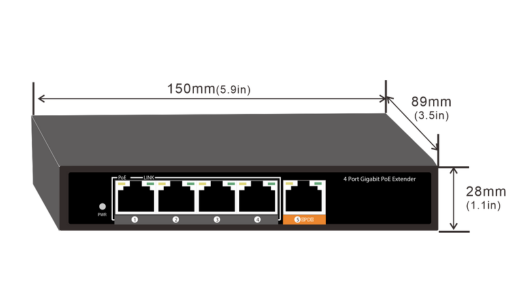

| Dimensions (W × D × H) | 150 × 89 × 28 mm (5.9 × 3.5 × 1.1 in) |
| Weight | 0.46 kg |
| Power over Ethernet (PoE) Specifications | |
| PoE Standard | PoE In: IEEE 802.3af/at/bt (PD) PoE Out: IEEE 802.3af/at (PSE) |
| PoE Power | PoE In: 48–56V DC, max 60W Per PoE Out Port: 48–56V DC, max 28W |
| Power Pin Assignment | PoE In: 1/2/4/5(-), 3/6/7/8(+) PoE Out: 1/2(-), 3/6(+) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab/z Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3bt PoE++ |
| Stability Testing | |
| Tests Passed | IEC 60068-2-32 (Free Fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Temperature | |
| Operating | -20°C ~ +55°C |
| Storage | -40°C ~ +75°C |
| Humidity | |
| Operating | 5% ~ 90% (Non-Condensing) |
| Storage | 5% ~ 90% (Non-Condensing) |
| Regulatory Compliance | |
| Certifications | FCC Class A, CE Class A |
