DCN-IPR4HWDNB-LITE-03, 4MP IR Bullet Network Camera, Lite Series


Description:The DCN 4MP IR Bullet Camera (Lite Series) delivers clear 4MP video with reliable IR night vision for day and night security. Its weatherproof IP66 design, smart detection, and PoE support make it a dependable choice indoors or outdoors.

Model No: DCN-IPR4HWDNB-LITE-03

Key Features:

  • 1/3” progressive scan CMOS
  • 2.8 mm fixed lens
  • Max resolution 2560×1440 @25fps
  • Intrusion & line crossing detection
  • DWDR, 3D DNR, HLC, BLC, Defog
  • IR distance up to 30m
  • Built-in microphone
  • 12V DC / PoE power supply
  • IP66 weatherproof

Specification

Camera

SpecificationDetails
Image Sensor1/3” Progressive Scan CMOS
Electronic ShutterAuto/Manual, 1/5 to 1/20,000s
Min. IlluminationColor: 0.1 Lux @ (F1.6, AGC ON), B/W: 0 Lux @ (IR LED ON)
S/N Ratio55 dB
Day & NightIR cut filter
IR DistanceUp to 30 m (98.4 ft.)
IR On/Off ControlAuto/Manual

Lens

SpecificationDetails
Lens TypeFixed focal
IrisFixed Iris
Focal Length2.8 mm
F NumberF2.0
Angle of ViewH: 97.8°, V: 54.9°

Video

SpecificationDetails
Max. Resolution2560(H) × 1440(V)
Streaming Capability2 Streams
Main Stream2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25fps
Sub Stream704×576, 640×360, 480×360, 352×288 @ 25fps
Bit Rate ControlCBR/VBR
Bit RateMain Stream: 512 kbps to 6140 kbps, Sub Stream: 128 kbps to 1536 kbps


SpecificationDetails
Image AdjustmentBrightness, Sharpness, Contrast, Saturation
White BalanceAuto/Manual
MirrorSupport
Exposure ModeAuto/Manual
Day/Night SettingAuto, Day, Night, Timing
Noise Reduction2D/3D NR
Image EnhancementHLC, BLC, Defog
Wide Dynamic RangeDWDR
Privacy MaskingSupport

Smart Function

SpecificationDetails
Intelligent AnalyticsIntrusion and Line crossing detection based on human detection
Basic EventsDisk alarm, Network alarm, Motion detection alarm

Network

SpecificationDetails
ProtocolsIPv4, HTTP/HTTPS, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP
Interface ProtocolONVIF, SDK
Max. User Access4 Users
Web Viewer<IE11, Chrome, Firefox, Microsoft Edge
LanguageEnglish, Chinese (Simplified), French, Korean, Polish, Italian, Spanish, German, Hungarian, Russian, Vietnamese, Thai, Danish, Czech, Slovak, Indonesian, Portuguese, Dutch, Hebrew, Arabic
Network Interface1 Ethernet (10/100 Base-T) RJ-45 Connector

Interface

SpecificationDetails
AudioBuilt-in Microphone

General

SpecificationDetails
Power SupplyDC12V (-15% to +25%) / PoE (IEEE 802.3af)
Power ConsumptionMax 4.5 W
Operating Temperature-25°C to 50°C (-13°F to 122°F)
Operating HumidityLess than 90% RH
Ingress ProtectionIP66
CertificationsCE/FCC
CasingMetal + Plastic

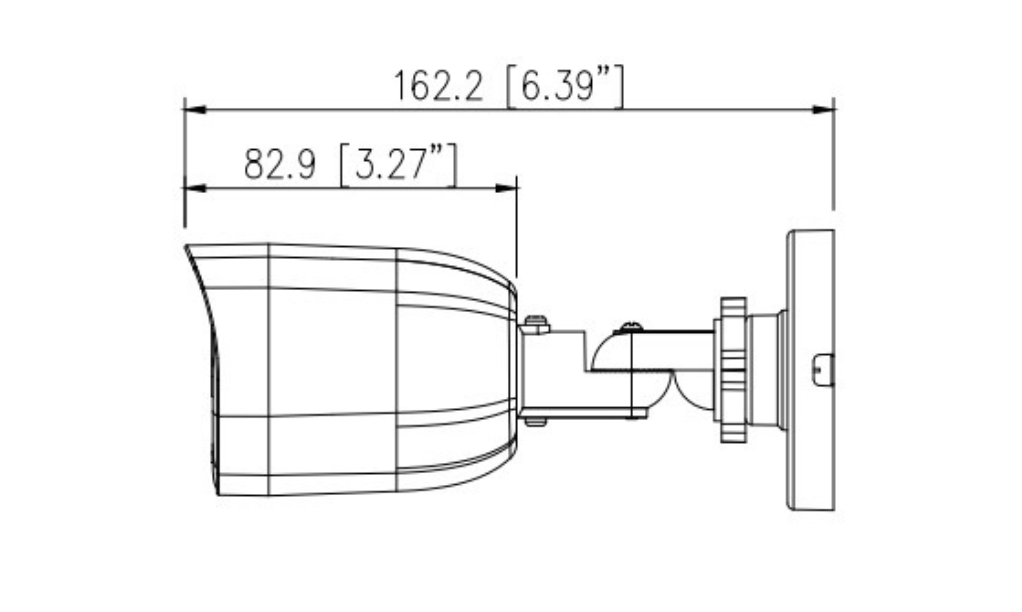

Dimensionsφ70 × 162.2 mm (φ2.76 × 6.39”)
Net Weight0.35 kg (0.77 lb.)

Additional information

Color

Black
