Name: DCN Industrial Outdoor PoE++ Extender, IP67 Waterproof, DCN-PE-2P-WP90
SKU: 2682
Availability: InStock

DCN Industrial Outdoor PoE++ Extender, IP67 Waterproof, DCN-PE-2P-WP90

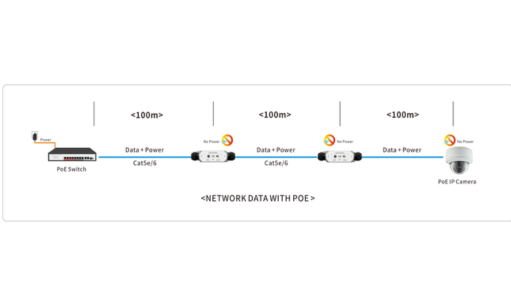

Description:The DCN-PE-2P-WP90 is a rugged IP67-rated industrial PoE++ extender that extends Gigabit data and high-power PoE up to 100m. With a 90W PoE++ input and 75W output, it’s ideal for powering PTZ cameras, outdoor APs, and other heavy-duty PoE devices in harsh environments—without extra cabling or external power.

Model No: DCN-PE-2P-WP90

Key Features:

Extends the range of PoE to 100 meters (328ft.)
Hardware-based 10/100/1000Mbps auto-negotiation
Power from PoE PSE switch,no local power required
IEEE 802.3af/at/bt Power over Ethernet compliant
Up to 90-watt for PoE port
Automatically detects and protects PoE equipments frombeing damaged by incorrect installation
IP67-rated aluminum case
Plug and Play

Specification

Technical Specifications – DCN-PE-2P-WP90
Ports
10/100M RJ-45 Copper Ports	2
UPoE+ Ports (PSE)	1
UPoE+ Ports (PD)	1
Power over Ethernet (PoE)
PoE Standards	IEEE 802.3bt UPoE+ (PSE/PD) Backward compatible with IEEE 802.3at/af
PoE Power Supply Type	End-span: 1/2 / 4/5 (+), 3/6 / 7/8 (-)
PoE Output per Port	52V DC, 300mA – 15.4W (802.3af) 52V DC, 600mA – 30W (802.3at) 52V DC, 1800mA – 90W (802.3bt)
PoE Power Budget (Source)	90W
Max PoE Power @ 200m	65W
Max PoE Power @ 300m	52W
Max PoE Power @ 400m	40W
Performance
Chipset	Realtek
Packet Buffer Memory	2 Mb
Forwarding Mode	Store-and-forward
Bandwidth	10 Gbps
Packet Forwarding Rate	3 Mpps
MAC Address Table	2K
MTBF @ 25°C	106,325 hours
100M Latency	8.321µs / 8.622µs / 8.435µs
1G Latency	3.414µs / 3.545µs / 3.628µs
Supported IEEE Protocols
• IEEE 802.3i, 802.3u, 802.3ab • IEEE 802.3af / 802.3at / 802.3bt • IEEE 802.3az Energy Efficient Ethernet • IEEE 802.3x Full-Duplex Flow Control
Monitoring
LED Indicators	Speed, Link, Activity, PoE mode
Physical Specifications
Dimensions	160 × 43 × 36 mm
Weight	0.25 kg
Enclosure	IP67 Metal Case
Installation	Wall-mount
Environmental
Operating Temperature	-30°C to 65°C
Operating Humidity	90% max, non-condensing
Storage Temperature	-40°C to 75°C
Storage Humidity	95% max, non-condensing
Altitude	Up to 10,000 ft
Certifications (EMC & Safety)
EMC Certifications	CE, FCC Part 15 Class A, VCCI Class A, EN 55022 Class A, EN 55024, C-Tick, CCC
Safety Certifications	CB, CSA, UL 1950 / EN 60950-1, AN/NZS 60950.1, CCC
Warranty & Support
Hardware Warranty	Limited Lifetime
Phone & Email Support	Limited Lifetime
24×7 Online Chat Support	Limited Lifetime

Additional information

Color	Black, white
