4MP IR Turrret
9
DCN-IPR4HZBNB-LITE-06

DCN-IPR4HZBNB-LITE-06, 4MP IR Turret Network Camera, Lite Series

Description:

The DCN 4 MP IR Turret Network Camera (Lite Series) delivers high-definition 4 MP imaging with built-in IR night vision and smart detection (human intrusion, line crossing), packaged in an affordable and adaptable turret form factor. Its durable IP66-rated housing, ONVIF compatibility, remote viewing options, and support for local storage make it ideal for trusted indoor and outdoor surveillance.

Model No: DCN-IPR4HZBNB-LITE-06

Key Features:

  •  1/3” progressive scan CMOS
  • 4 mm fixed lens (2.8mm optional)
  • Max resolution 2560×1440 @25fps
  • DWDR, 3D DNR, HLC, BLC, Defog
  • Support intrusion and line crossing based on human detection
  • Smart IR distance up to 30m
  • Built-in microphone
  • Built-in SD card slot
  • 12V DC/PoE power supply
  • PoE, IP66
Categories: , , ,
Enquire NowDownload Datasheet

Specification

Image Sensor1/3” Progressive Scan CMOS
Electronic ShutterAuto/Manual, 1/5 ~ 1/20,000s
Min. IlluminationColor: 0.1 Lux @ (F1.6, AGC ON), B/W: 0 Lux @ (IR LED ON)
S/N Ratio55 dB
Day & NightIR cut filter
IR DistanceUp to 30 m (98.4 ft)
IR On/Off ControlAuto/Manual
Pan/Tilt/RotationPan: 0˚ ~ 360˚, Tilt: 0˚ ~ 85˚, Rotation: 0˚ ~ 360˚
Lens TypeFixed focal, Fixed Iris
Focal Length2.8 mm
F NumberF2.0
Angle of ViewH: 92.9°, V: 50.4°
Max. Resolution2560(H)×1440(V)
Streaming Capability2 Streams
Main Stream2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25fps
Sub Stream704×576, 640×360, 480×360, 352×288 @ 25fps
Bit Rate ControlCBR/VBR
Bit RateMain: 512kbps ~ 6144kbps, Sub: 128kbps ~ 1536kbps
Image AdjustmentBrightness, Sharpness, Contrast, Saturation
White BalanceAuto/Manual
MirrorSupport
Exposure ModeAuto/Manual
Day/Night SettingAuto, Day, Night, Timing
Noise Reduction2D/3D NR
Image EnhancementHLC, BLC, Defog
Wide Dynamic RangeDWDR
Privacy MaskingSupport
Smart DetectionIntrusion, Line crossing detection (human detection)
ProtocolsIPv4, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP, HTTP/HTTPS, PPPOE
Interface ProtocolONVIF, SDK
Max. User Access4 Users
Web Viewer<IE11, Chrome, Firefox, Microsoft Edge
LanguageMulti-language support (English, Chinese, French, Spanish, German, Arabic, etc.)
Network Interface1 Ethernet (10/100 Base-T) RJ-45 Connector
AudioBuilt-in Microphone
SD Card SlotBuilt-in, up to 256GB
Reset ButtonSupport
Power SupplyDC12V (-15%~+25%)/POE (IEEE 802.3af)
Power ConsumptionMax 4.5 W
Operating Temperature-25°C ~ 55°C (-13°F ~ 131°F)
Operating HumidityLess than 90% RH
Ingress ProtectionIP66
CertificationsCE/FCC
CasingMetal + Plastic

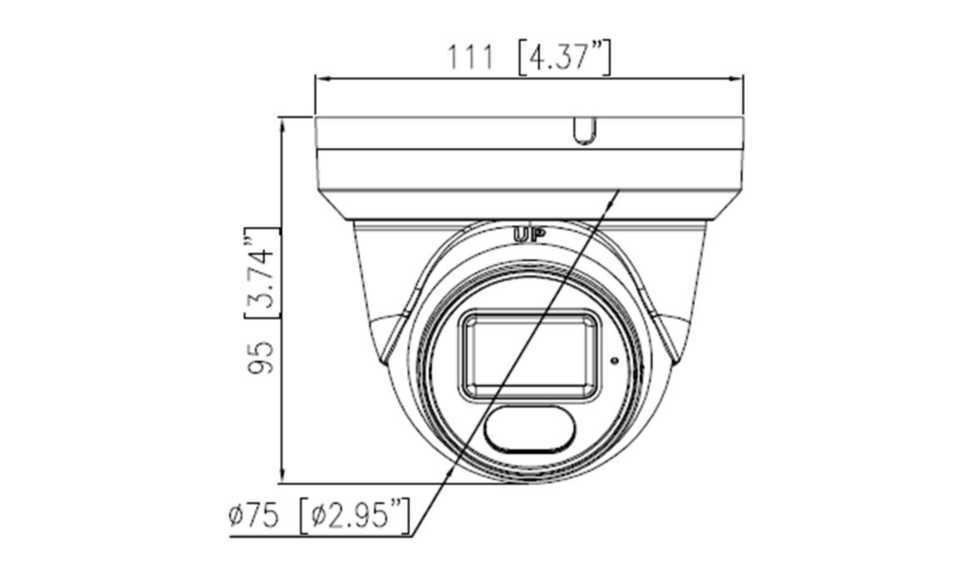

DimensionsΦ111 × 95mm
Net Weight0.35 kg (0.77 lb)
